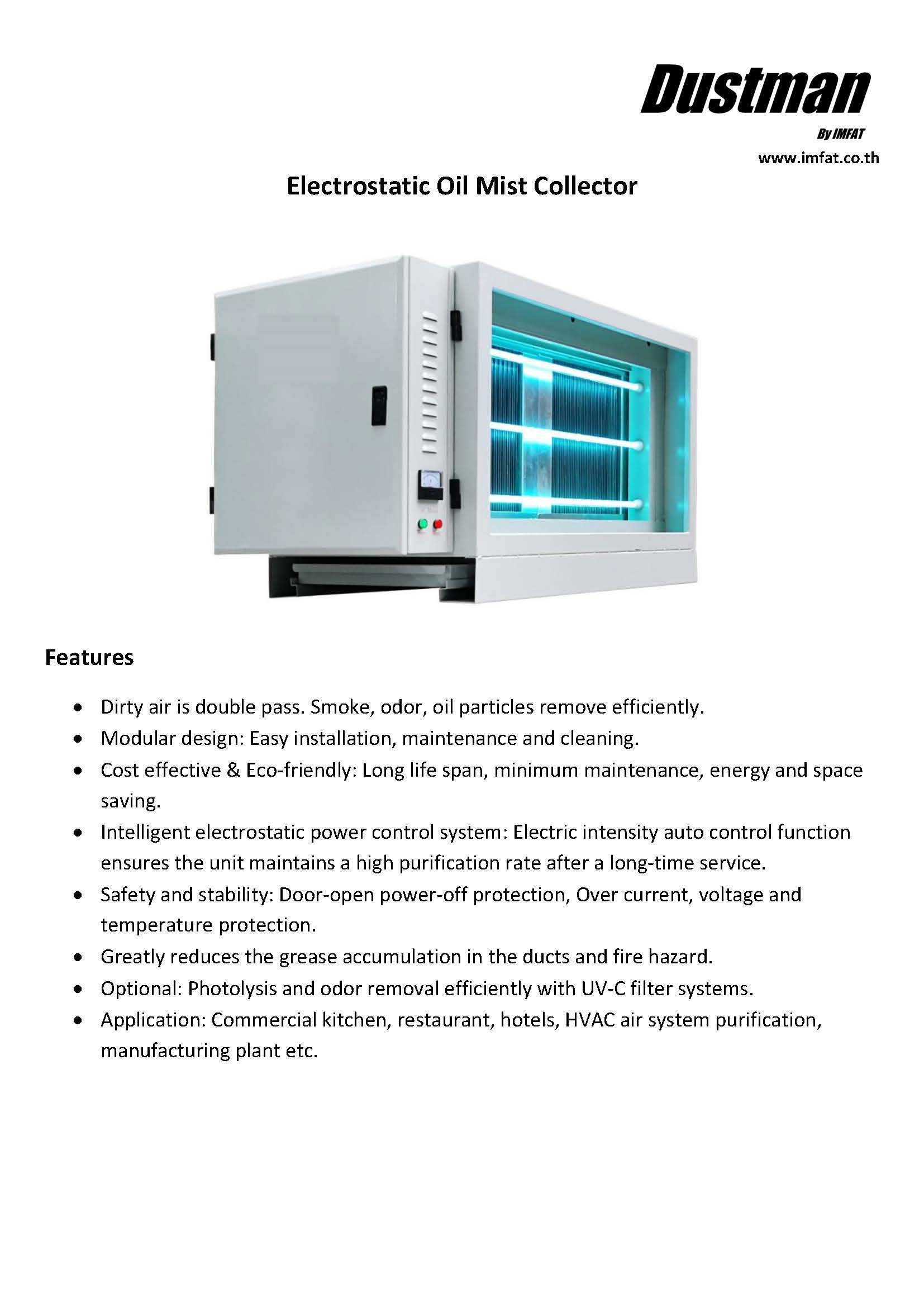

Features
- Dirty air is double pass. Smoke, odor, oil particles remove efficiently.
- Modular design: Easy installation, maintenance and cleaning.
- Cost effective & Eco-friendly: Long life span, minimum maintenance, energy and space saving.
- Intelligent electrostatic power control system: Electric intensity auto control function ensures the unit maintains a high purification rate after a long-time service.
- Safety and stability: Door-open power-off protection, Over current, voltage and temperature protection.
- Greatly reduces the grease accumulation in the ducts and fire hazard.
- Optional: Photolysis and odor removal efficiently with UV-C filter systems.
- Application: Commercial kitchen, restaurant, hotels, HVAC air system purification, manufacturing plant etc.

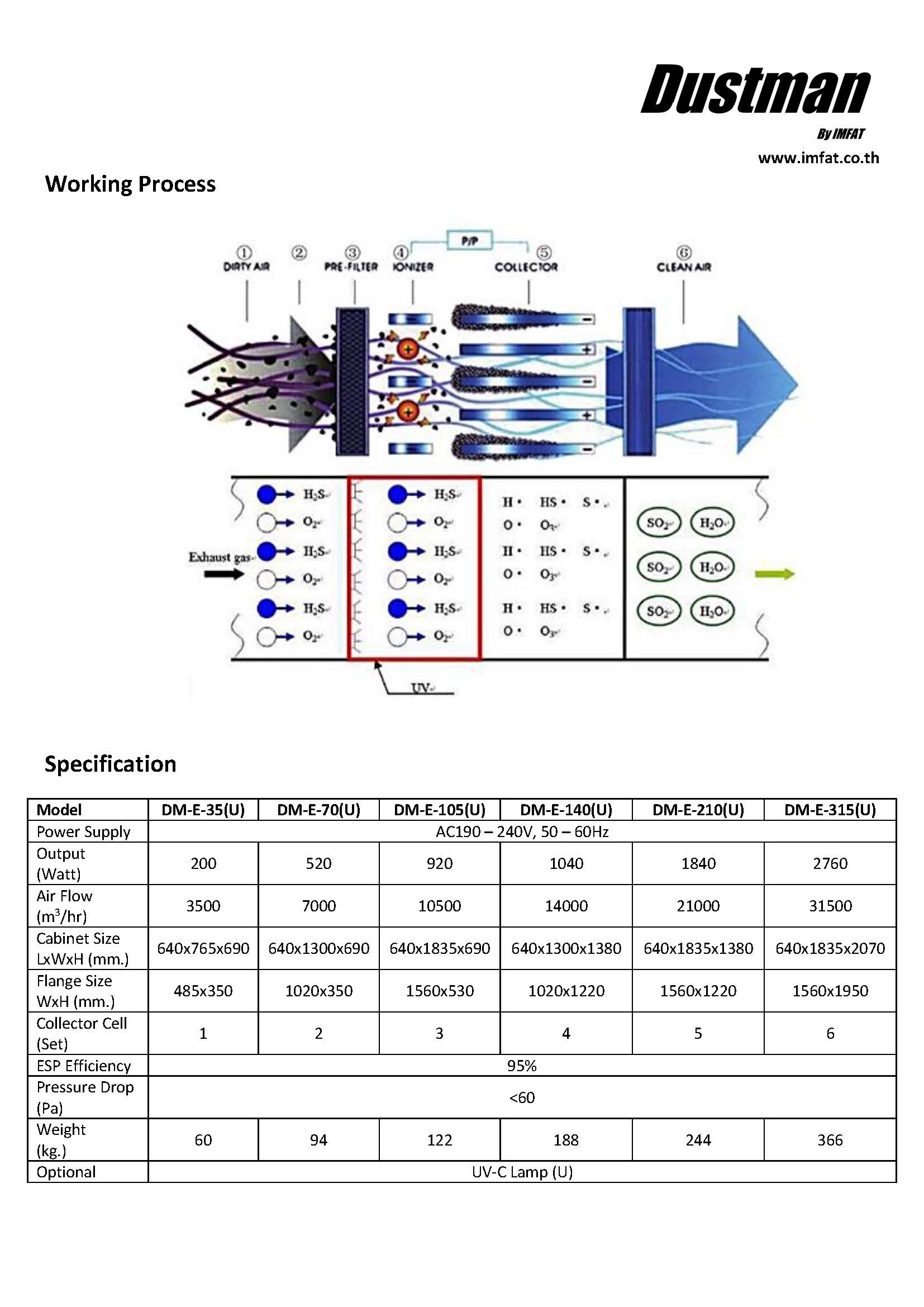

Specification
|
Model |
DM-E-35(U) |
DM-E-70(U) |
DM-E-105(U) |
DM-E-140(U) |
DM-E-210(U) |
DM-E-315(U) |
|
Power Supply |
AC190 – 240V, 50 – 60Hz |
|||||
|
Output (Watt) |
110 |
175 |
240 |
350 |
480 |
720 |
|
Air Flow (m3/hr) |
3500 |
7000 |
10500 |
14000 |
21000 |
31500 |
|
Cabinet Size LxWxH (mm.) |
640x765x690 |
640x1300x690 |
640x1835x690 |
640x1300x1380 |
640x1835x1380 |
640x1835x2070 |
|
Flange Size WxH (mm.) |
485x530 |
1020x530 |
1560x530 |
1020x1180 |
1560x1180 |
1560x1870 |
|
Collector Cell (Set) |
1 |
2 |
3 |
4 |
5 |
6 |
|
ESP Efficiency |
95% |
|||||
|
Pressure Drop (Pa) |
39 |
|||||
|
Weight (kg.) |
65 |
106 |
137 |
212 |
274 |
411 |
|
Optional |
UV-C Lamp (U) |
|||||
